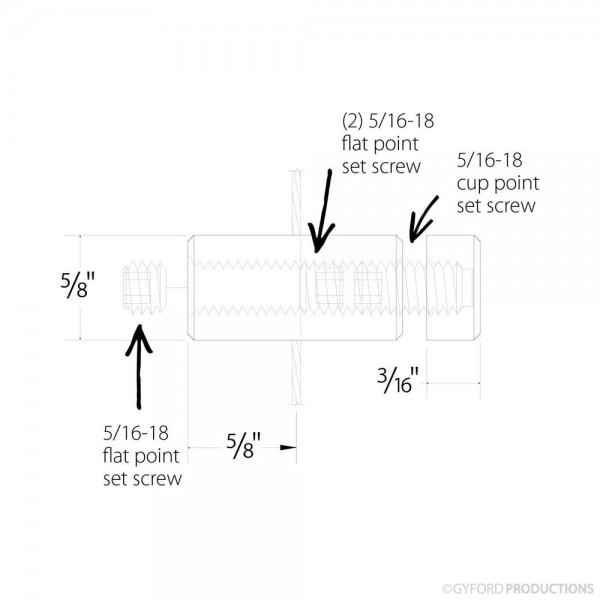

WS-A23-LINE.jpg Line Drawing

WS-A23-LINE.jpg Line Drawing

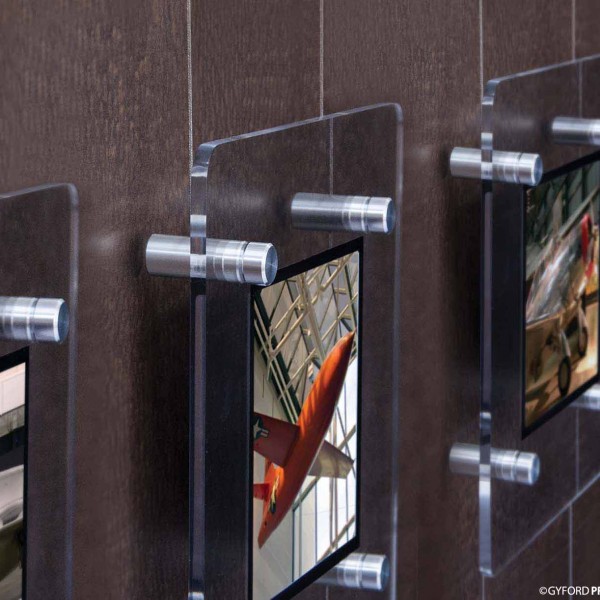

ws-a23-app.jpg Application

ws-a23-app.jpg Application

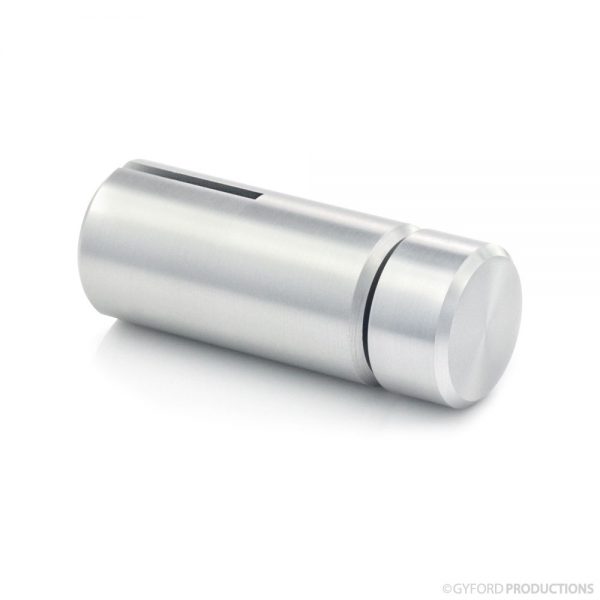

WS 3/64″ Wire Hub with Cap

The WS-A23 attaches to wire with a flat point set screw and secures material with 5/8″ diameter cap. Specify material thickness for stud length. This assembly will require a 3/8″ hole in the material.

Login or register now to see pricing or place an order.

SKU: WS-A23. Categories: Wire Systems, Wire Suspension, WS Grippers.

Product Specifications

SKU:

WS-A23

(D) Cap Height:

5/16"

(A) Diameter:

5/8"

(B) Length:

1-1/4"

Material:

Machined Aluminum

Tapped:

5/16-18

Wire/Rod Size:

3/64" (.062 diameter)

(C) Wire to Slot:

5/8"

Includes
Application

Included Hardware

*Specify panel thickness for stud size

WS-HWC1, SO-CAP8, (2) HD-FPT5

Recommended Applications

Mount panels parallel to your wire system
